Candle Filter

For catalyst recovery,carbon removal,bulk drugs filtration etc.)

Candle filter is basically a polishing filter working under pressure.The filter works in surface filtration & clean in place filtration principle.The filter consists of candle shaped filter alements made out of equi-diameter pipe.Each candle is covered with filter hose in polyproplyene,polyster,nylon and PTEE. These candle are arranged vertically in a pressure vessel.The number of candle to be fitted depends upon the filtration area. The filtration and cake formation takes place under pressure and the wet or dry discharge is possible by means of blow back.For continuous operation two filter are installed.

Enquiry Now

Features:

  • No moving parts.There fore less maintance and reduced spares parts requirements.
  • Leak proof tongue & groove body flange joint.
  • Designed for blowback/backwashing.
  • Permanent candle with replace filter medium.
  • "Bottom to top" flow for uniform cake formation.
  • Completely closed systems.

Advantage:

  • Safe and hygienic operations.
  • Complete process and operator safety.
  • Flexible filtration rating in the same equipment.
  • Higher cake holding capacity.
  • Least pressure drop,longer run time.
  • Zero emissoin to environments.

Application :

  • Recovery of catalysts like Nikel,Platinum,Palladium etc.
  • Removal of activated carbon,charocoal in pharma plants.
  • Bleaching earth removal in vegetable oil plants.
  • Resin filtration.
  • All types of polishing applications.

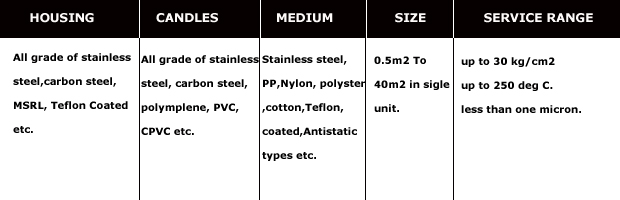

Availability Range :
