Single/Multi Bag Filter

Bag filter system is designed for optimum filtration performance.Its range provides filtration solution for a broad variety of fluid applicationin the process industry.They are particularly useful for filtering large volumes of high viscosity liquids.Bag filter is constructed of filter housing.Filter bags internal cage to support bags,positive sealing arrangement and choice of end connections.The internal support ensure bags will not brust as high differntial pressures build up during operations.

Enquiry Now

Operations:

Unfiltered fluid enters the housing and is distributed evenly around the filter bags.Filtration takes place from inside to outside.Solids are collected on the inside of filter bagd for easy removal.The filtered fluid then exits through the outlet pipes.

Feature & Benefits:

  • High flow rates.
  • Low pressure drop.
  • High dirt holding capacity.
  • Positive sealing arrangement to avoid bypassing.
  • Suitable for PP Collar,Rigid Ring & Snap Band Bags.
  • Quick opening triclovers & flynut design.
  • Easy to operate & low maintance.
  • Flow rate up to 2000 m3/hr & more.
  • Customized design available.
  • Housing are permanently pipes.
  • Covers are O ring sealed.
  • All housing made from SS316L & SS304 are mirror polished to inside and outside.
  • Multiple Bag filter/Single bag filter/Duplex bag filter unit designs are available.

Application:

  • Processing chemical
  • Paints
  • Food Ingredients
  • Varnish
  • Vegetable Oils
  • Sugar solutions
  • Petroleum products
  • Inks

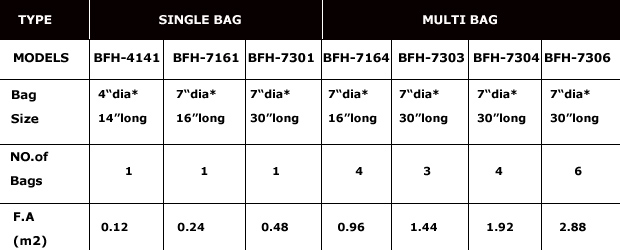

Availability Range :
