Double Cone Blender

Operation:

The double cone blender is an efficient and versatile machine for mixing dry powder and granules homogeneously.All the contact parts made out of stainless steel of required grade by customer.Two third of the volume of the cone blender is filled to ensure proper mixing.It can be used for pharmaceutical,food,chemical and cosmetic product etc.

Enquiry Now

Salient Features:

  • The conical shape at both ends enables uniform mixing and easy discharge.
  • All contact parts are made out of stainless 304 or 316 quality material,as required by customer.
  • Manual with facility with hand wheel for inching.The same will be provided with SS cover & limit switch.(In 200kgs & above model)
  • Suitable size of butter fly valve at one end of the cone provided for material discharge & openable cover provided at other end of cone for material charging & cleaning.
  • Cone will be polished from the inside & outside & structure will be matt polished.
  • The conical shape is mounted on stuady stand with bearing blocks & driven through a gear box coupled with motor.
  • Panel fabricated from SS304 material with facility of three phase indication,DOL starter,digital timer,AMP. meter.
  • Paddle types baffles can be provided on the shaft for better mixing.
  • Safety guards made from SS304 pipes provided in front of the machine with limit switch.
  • Food grade rubber gasket will be used on both the ends of cone as well as in butterfly valve.

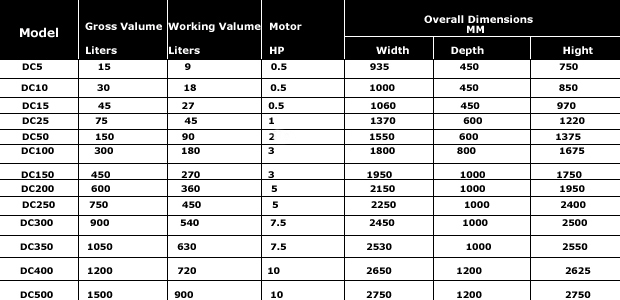

Technical Specifcation :
