Collid Mill

TECHNIC Colloid Mill is suitable for Homogenising, Emulsifying, Dispersing, Mixing, Comminuting of liquids to highly viscous products. It is based on rotor-stator principle. It is available in plain as well as Water Jacketted model which is suitable for heat sensitive products. Flame proof electricals can be supplied on demand at extra cost.

Enquiry Now

Operation :

Product is fed to the operating area of rotor, having a speed of 3000 rpm by specially designed feed device. The product is processed by high shear, pressures & friction between the stator & rotor, & is also subjected to intensive vibration which exert their force on it by means of pressing & releasing actions.due to the slightly deviating tapering of the milling surfaces of stator & rotor, the angular gap becomes narrower towards the discharge section. This processed product continuously leaves the mill through the drain pipe, if required, it can be recirculated.

Silent Features :

  • All contact parts are made out of SS. 304 (SS.316 on demand at extra charges). No casting are used for avoidingcontamination problems.
  • Coupling provided between motor shaft & rotor shaft for ease in maintenance.
  • Three oil seals between the Motor & the processing chamber to prevent liquid going in the motor winding, Resulting in the burning of the motor.
  • Modified design of semi concave teeth in rotor & stator reduces the motor HP & gives better performance in size reduction without damaging the product.
  • Extended bearing housing specially designed to facilitate fine adjustment of bearing clearances or back lash to avoid metal to metal contact of rotor & stator.
  • This unique design provides smooth & consistence all round performance & long life of rotor & stator.
  • Leak proof neoprene sealing device.
  • Three way cock system for draining & recirculation of liquids provided as standard. Extra discharge spout provided as standard for viscous products.
  • DOL Starter with over load relay for protection against single phasing & low voltage.
  • Contact parts can be easily dismantled for cleaning.
  • Special design facilitates adjustments of the grinding gap by an exterior screw by means of handle even during operation.
  • Flame proof motor &Flame proof rotary switch can be provided on request at extra cost.

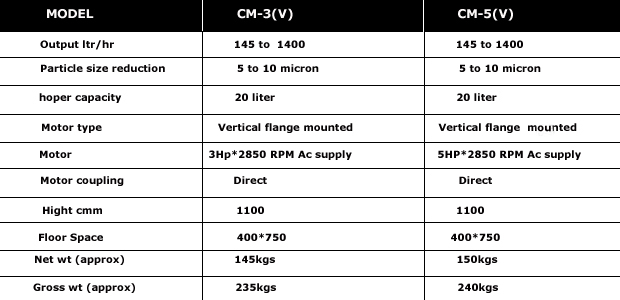

Technical Specifcation :
